Excel dashboard design principles

Most dashboards aren't bad because the numbers are wrong. They're bad because the reader can't tell what to look at. A dashboard is a piece of communication: someone opens it for a few seconds, and in that time it either answers a question or it doesn't. Design is what decides which.

The principles below aren't decoration. Each one is a lever that increases comprehension: how fast a reader finds the answer, how much they trust it, and whether they act on it. You don't need all eight at once. If I could only fix two, I'd pick hierarchy and color - most dashboards improve dramatically before you touch anything else. For the broader idea this sits inside, see what Excel design is.

1. Lead with visual hierarchy

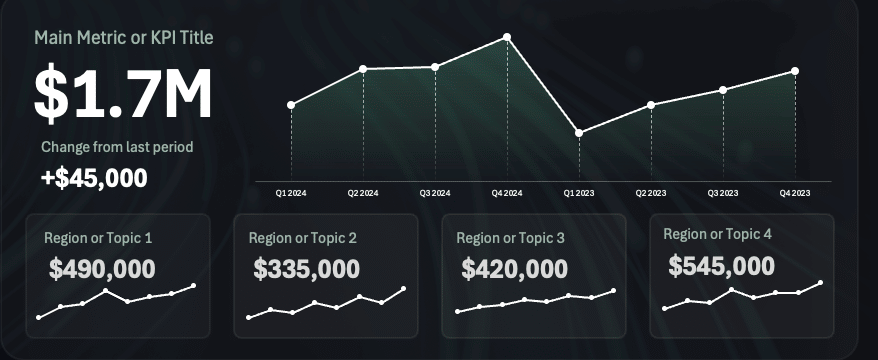

Do this: decide what the report needs to say first. If it's one headline number, make that the largest thing on the page: a hero KPI in big type at top-left or top-center. If the point is a comparison, lead with the comparison instead. Not that: twenty tiles all the same size, where the headline revenue figure is the same weight as a footnote. When everything shouts, nothing is heard.

2. Use color as a signal, not decoration

Do this: choose colors for the background, panels, text, highlights, and categories your report needs. If revenue is blue in the scorecard, keep it blue in the trend chart. Pair status colors with labels or symbols. Not that: a new color for the same category in every chart, or nearly identical colors for categories you need to tell apart. Color can do a lot of the organizing, but labels and layout still need to make sense without it.

3. Get typography and spacing right

Do this: choose one clean typeface (two at most), set a deliberate size scale (big for KPIs, medium for headings, small for labels) and format numbers consistently (same decimals, thousands separators, right-aligned in columns). Add padding inside every card. Not that: default Calibri 11 everywhere, numbers center-aligned so the digits don't line up, labels jammed against cell borders. In my experience, alignment and spacing do more for polish than any single feature.

4. Make your charts honest

Do this: match the chart to the question. Bars for comparing categories, lines for trends over time, a single big number for "how are we doing right now." Then strip the chrome: kill the gridlines, the heavy borders, and any legend you can replace with direct labels. Not that: a pie chart with ten slices, dual axes scaled to mislead, or a column chart whose axis starts at 90 so a tiny change looks dramatic. A chart should make the comparison obvious, not impressive.

5. Use interface patterns people already understand

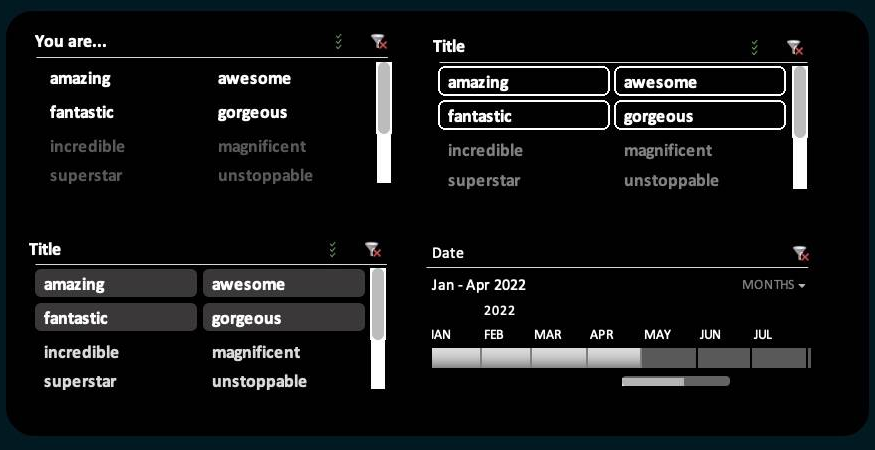

Do this: add slicers and timelines for filtering, give the dashboard a clear title block with the date range and source, and keep navigation predictable across every sheet. Controls belong in a consistent spot so the reader never hunts for them. Not that: filters hidden in obscure cells, a wall of raw data on the same tab as the summary, or a different layout on every sheet. A dashboard should feel like a product, not a puzzle.

6. Build it as a reusable system

Do this: keep the current theme, starter workbook, and styling rules together. Theme-aware objects can change together within a workbook. For older reports, apply the updated theme to each file, check manual formatting, and make any layout changes separately. Not that: hand-formatting each cell, so the next report starts from scratch and slowly drifts out of sync. A system is what lets a whole team produce consistent work. Starting from a working reference file is the fastest way to inherit a system instead of building one. If the palette is the part you're stuck on, the Color Studio builds one from a brand color and exports it as an Office theme.

7. Respect whitespace

Do this: leave generous margins around the canvas and consistent gutters between cards. Let related numbers cluster and unrelated ones separate, using space rather than lines. Not that: packing the sheet edge to edge because empty cells feel "wasteful." Cramped layouts read as unfinished; breathing room reads as considered.

8. Align everything to a grid

Do this: set a column-and-gutter grid and snap every element to it, so card edges, chart edges, and text baselines line up. Use consistent column widths and row heights as your underlying units. Not that: elements floating a few pixels off from each other. The eye notices misalignment even when it can't name it, and it quietly undermines trust in the numbers themselves.
