Excel progress charts
Goal completion, target vs actual, percent to plan - the figures a dashboard exists to answer. Build a clean bar or radial ring, and understand the extra work behind a gauge.
Updated September 30, 2026.
For a goal with a real end point, split the value into "done" and "remaining." A stacked bar shows it in a line; a doughnut makes it a ring. Once the result can go past 100% or below zero, show actual against target instead of forcing it into a part-of-whole shape.
Progress bar: target vs actual
The workhorse. Put two numbers in cells, the actual and the remaining-to-target, and insert a stacked bar chart. Color the actual with your accent and the remainder a light track gray, then delete the axis, gridlines, title, and legend. You're left with a single clean bar that fills toward the goal. Stack several of them and you get a tidy "percent to plan" panel that scans top to bottom.
For the lightest possible version, skip the chart entirely: drop a percent in a column and apply a conditional-formatting data bar. It lives inside the cell, updates automatically, and is perfect for a table row. Use the chart version when the bar is a hero element; use the data bar when it's one column among many.

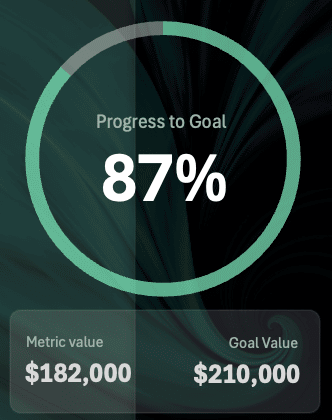

How to build a radial progress ring
Two values that add to 1
This two-slice ring is for completion from 0% to 100%. Put 65% in A1 and =1-A1 in A2. Format A2 as a percentage: it shows 35%. Change A1 within that range and A2 calculates what's left. If the actual value can exceed the target, or go negative, use a bar comparing actual with target instead.
Insert a doughnut
Select A1:A2, then Insert → Doughnut. You get a ring split into a filled part and an empty part.
Color the segments
Click once to select the series, click again to select one segment. Accent for the progress, a light neutral for the track.
Thin the ring
Format Data Series → Doughnut Hole Size to about 75-85%, so the ring is a clean band, not a fat donut.
Strip the chrome
Delete the title, legend, and borders. Only the ring should remain on the canvas.
Percent in the center
Drop a text box or a linked cell in the hole showing the percent, large. Now the ring reads as one indicator.
Gauge: a half-doughnut
A gauge uses a doughnut with half the circle hidden. For a 65% completion dial, the three inputs can be 65 completed, 35 remaining, and 100 hidden: the hidden slice is half of the total 200. This explains the dial, not an updating needle. A manually placed needle shape is a static marker; a dynamic needle needs a separate series linked to the value and checked at 0%, 65%, and 100%. This section is a conceptual overview, not a complete dynamic-gauge build. Gauges take more space than bars, so reserve them for a single headline number.
