Excel dashboard layout
A dashboard lives or dies on its layout. Before a single chart, you need a grid, real margins, and zones - the invisible structure that makes everything on top look composed.
Turn Excel's cells into a layout grid: narrow uniform columns, real margins, consistent gutters, and edges that line up. Then put the most important thing where people will see it first. That could be a KPI, a comparison, or a group of related metrics; the grid works for all three.
Make the cells a layout grid

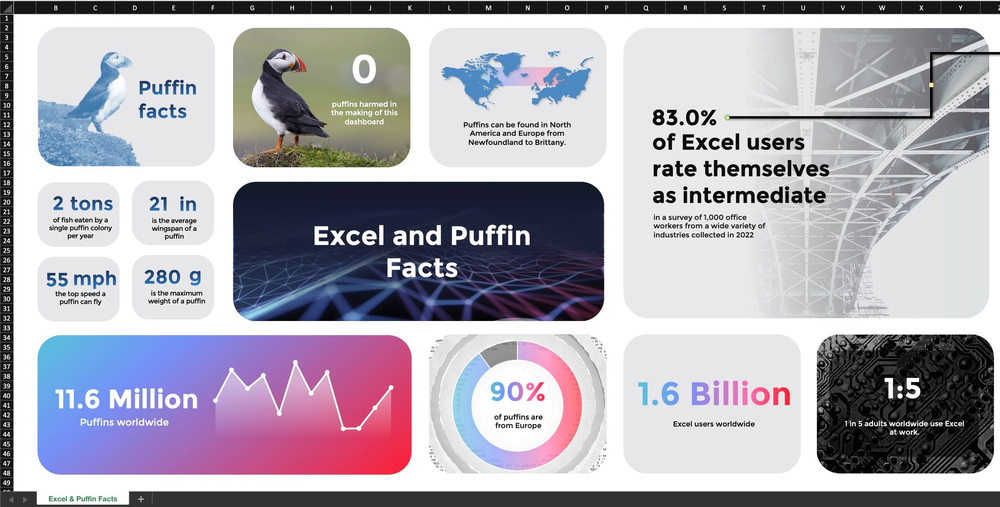

Default Excel gives you a handful of wide columns - a clumsy grid that forces every element into one of a few positions. The fix is the move every designed dashboard starts from: select all columns and set them to a narrow uniform width, around 2 to 3. Now you have dozens of thin columns that behave like the columns of a real design grid. A panel can be 8 columns wide, the next 6, with a 1-column gutter between - placement becomes precise instead of approximate.
On top of that grid, leave outer margins: keep the first column and first couple of rows empty so nothing touches the edge of the sheet. Then reserve consistent gutters (one or two empty narrow columns and a couple of empty rows between every block) so the same gap separates everything. Margins and gutters are the single biggest reason a dashboard looks finished rather than crammed.
How to lay it out
Narrow uniform columns
All columns to ~2-3 width. Many thin columns give you a fine grid to align to, instead of a few wide ones that fight your placement.
Margins and gutters
An empty border column and rows around the edge; consistent empty columns and rows between blocks. The same gap everywhere reads as order.
Give it a starting point
Put the main answer or question where the reader will notice it. A headline number works for some reports; others need a comparison first.
Group the parts
Top-line numbers, the charts that explain them, and supporting detail can form three useful zones. Change the order if the reader's question demands it.
Size rows for whitespace
Taller header rows, short spacer rows between zones. Let whitespace separate sections - it's cleaner than a wall of borders.
Align to the grid
Snap every panel, chart, and card to the same column lines so edges line up and the page reads as one composition.
Design along the way people look
Readers don't study a dashboard cell by cell. They look for a place to start. On a left-to-right report, the top-left and the top band are useful places to put the answer, but don't put a big number there just because a layout rule told you to. If the point is a comparison, lead with the comparison. If the page covers several topics, group them so someone can find the one they came for. Put the supporting detail close enough to the claim it explains.

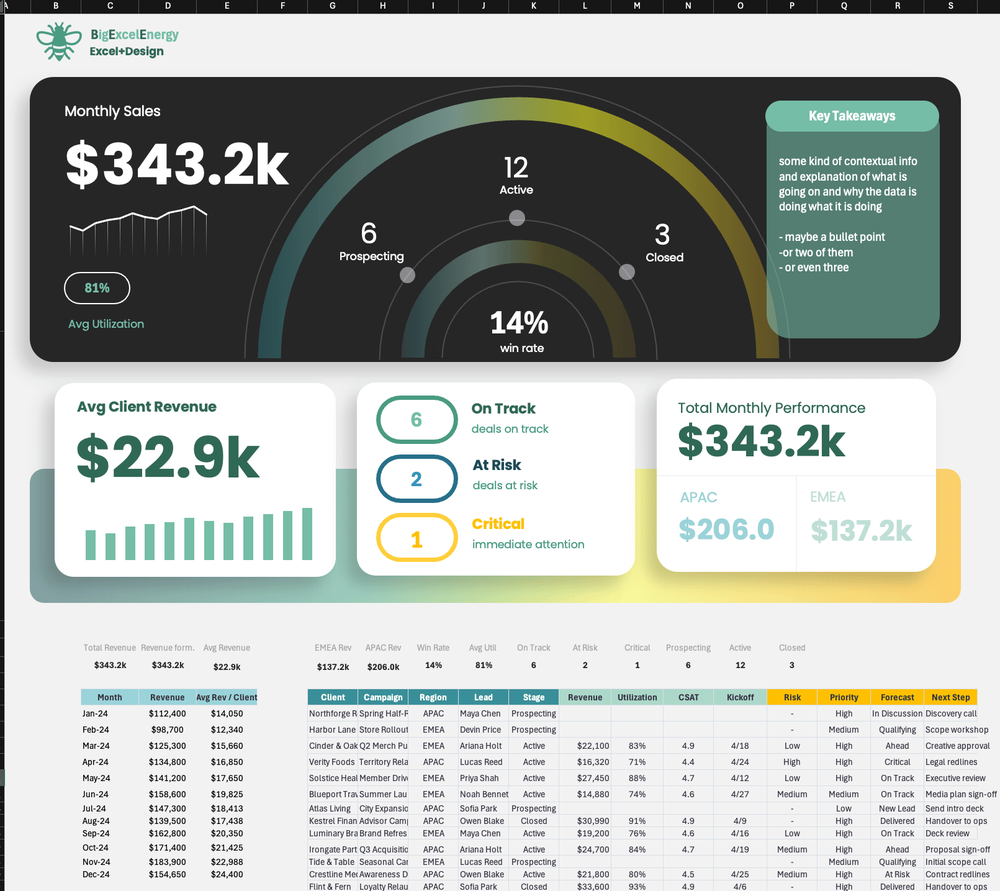

In the example below, a headline number comes first, supporting cards follow, and the granular tables come last. That's one good arrangement, not the required shape of every dashboard. The important part is deciding the reading order before filling the sheet. It's the layout half of the broader design principles, and it works with color and typography to make the page legible. There are card layout examples if you want to see how that top band gets built.
What breaks a layout
Related techniques
How to use shapes in Excel
Build the panels and cards that sit on top of your layout grid.
Use shapes →Excel KPI card design
Design the metric cards that fill the top zone of the dashboard.
Build a card →Excel dashboard examples
See finished layouts with grids, margins, and zones working together.
See examples →Excel Dashboard Toolkit
Take apart finished layouts, source tables, chart styles, and reusable report elements.
See the working files →Excel dashboard layout, answered
How do I lay out an Excel dashboard?
Start by turning the sheet into a layout grid: set the columns to a narrow uniform width, leave outer margins, and use consistent gutters. Decide what the reader needs first, then group top-line numbers, explanatory charts, and supporting detail around that question. Align the blocks to the same column lines.
What is the best column width for an Excel dashboard grid?
Use a narrow uniform width, roughly 2 to 3, across all columns so you have many thin columns to align to, like the columns of a design grid. Wide default columns force everything into a few clumsy positions; narrow uniform columns let you place panels precisely and keep gutters consistent.
What reading pattern should an Excel dashboard follow?
Give the reader an obvious starting point, then lead them from the main answer to the evidence and detail. A top-left headline is useful in many left-to-right reports, but a comparison or a grouped overview may need a different arrangement. Test the order against the question the audience came to answer.
How do I create zones in an Excel dashboard?
A top summary, middle explanation, and lower detail area is a useful starting arrangement, not a fixed template. Group related content, separate groups with whitespace rather than heavy borders, and keep their edges aligned to the same column grid.
Why does my Excel dashboard look cramped?
Almost always it's missing margins and whitespace. Content runs to the edges, columns are uneven, and zones touch with no gap. Add an outer margin, set uniform narrow columns, insert spacer rows and gutter columns between blocks, and align every edge. Spacing and alignment do more for a polished layout than any single feature. More on this →
